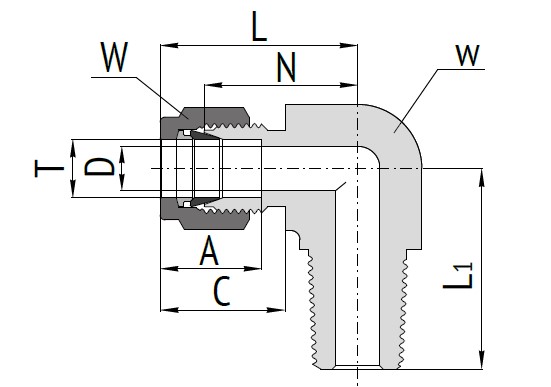

| Кодировка | Материал | D | L | L1 | Типоразмер концевого соединения 1 | Типоразмер концевого соединения 2 | ||
|---|---|---|---|---|---|---|---|---|
| 1 | 291-1/8x1/8N-SS | SS316 | 2.28 | 24.91 | 18 .90 | 1/8 | 1/8 NPT | |
| 2 | 291-1/8x1/4N-SS | SS316 | 2.28 | 24.91 | 23 .36 | 1/8 | 1/4 NPT | |
| 3 | 291-1/4x1/16N-SS | SS316 | 3.04 | 26.90 | 18 .79 | 1/4 | 1/16 NPT | |
| 4 | 291-1/4x1/8N-SS | SS316 | 4.82 | 26.47 | 19 .10 | 1/4 | 1/8 NPT | |
| 5 | 291-1/4x1/4N-SS | SS316 | 4.82 | 27.18 | 23 .87 | 1/4 | 1/4 NPT | |
| 6 | 291-1/4x3/8N-SS | SS316 | 4.82 | 29.71 | 28 .40 | 1/4 | 3/8 NPT | |
| 7 | 291-1/4x1/2N-SS | SS316 | 4.82 | 31.97 | 33 .00 | 1/4 | 1/2 NPT | |
| 8 | 291-3/8x1/8N-SS | SS316 | 4.82 | 30.48 | 20 .80 | 3/8 | 1/8 NPT | |
| 9 | 291-3/8x1/4N-SS | SS316 | 7.11 | 30.48 | 25 .40 | 3/8 | 1/4 NPT | |
| 10 | 291-3/8x3/8N-SS | SS316 | 7.11 | 31.24 | 28 .44 | 3/8 | 3/8 NPT | |
| 11 | 291-3/8x1/2N-SS | SS316 | 7.11 | 31.42 | 33 .02 | 3/8 | 1/2 NPT | |
| 12 | 291-3/8x3/4N-SS | SS316 | 7.11 | 37.08 | 36 .83 | 3/8 | 3/4 NPT | |
| 13 | 291-1/2x1/4N-SS | SS316 | 7.11 | 36.06 | 28 .30 | 1/2 | 1/4 NPT | |
| 14 | 291-1/2x3/8N-SS | SS316 | 9.65 | 36.06 | 28 .30 | 1/2 | 3/8 NPT | |
| 15 | 291-1/2x1/2N-SS | SS316 | 10.41 | 36.06 | 33 .02 | 1/2 | 1/2 NPT | |
| 16 | 291-1/2x3/4N-SS | SS316 | 10.41 | 39.87 | 36 .29 | 1/2 | 3/4 NPT | |
| 17 | 291-3/4x1/2N-SS | SS316 | 11.93 | 39.87 | 36 .29 | 3/4 | 1/2 NPT | |
| 18 | 291-3/4x3/4N-SS | SS316 | 15.74 | 39.87 | 36 .29 | 3/4 | 3/4 NPT | |
| 19 | 291-1/8x1/8R-SS | SS316 | 2.28 | 24.91 | 18 .90 | 1/8 | 1/8 BSPT | |
| 20 | 291-1/8x1/4R-SS | SS316 | 2.28 | 24.91 | 23 .36 | 1/8 | 1/4 BSPT | |
| 21 | 291-1/4x1/16R-SS | SS316 | 3.04 | 26.90 | 18 .79 | 1/4 | 1/16 BSPT | |
| 22 | 291-1/4x1/8R-SS | SS316 | 4.82 | 26.47 | 19 .10 | 1/4 | 1/8 BSPT | |
| 23 | 291-1/4x1/4R-SS | SS316 | 4.82 | 27.18 | 23 .87 | 1/4 | 1/4 BSPT | |
| 24 | 291-1/4x3/8R-SS | SS316 | 4.82 | 29.71 | 28 .40 | 1/4 | 3/8 BSPT | |
| 25 | 291-1/4x1/2R-SS | SS316 | 4.82 | 31.97 | 33 .00 | 1/4 | 1/2 BSPT | |
| 26 | 291-3/8x1/8R-SS | SS316 | 4.82 | 30.48 | 20 .80 | 3/8 | 1/8 BSPT | |
| 27 | 291-3/8x1/4R-SS | SS316 | 7.11 | 30.48 | 25 .40 | 3/8 | 1/4 BSPT | |
| 28 | 291-3/8x3/8R-SS | SS316 | 7.11 | 31.24 | 28 .44 | 3/8 | 3/8 BSPT | |
| 29 | 291-3/8x1/2R-SS | SS316 | 7.11 | 31.42 | 33 .02 | 3/8 | 1/2 BSPT | |
| 30 | 291-3/8x3/4R-SS | SS316 | 7.11 | 37.08 | 36 .83 | 3/8 | 3/4 BSPT | |
| 31 | 291-1/2x1/4R-SS | SS316 | 7.11 | 36.06 | 28 .30 | 1/2 | 1/4 BSPT | |
| 32 | 291-1/2x3/8R-SS | SS316 | 9.65 | 36.06 | 28 .30 | 1/2 | 3/8 BSPT | |
| 33 | 291-1/2x1/2R-SS | SS316 | 10.41 | 36.06 | 33 .02 | 1/2 | 1/2 BSPT | |
| 34 | 291-1/2x3/4R-SS | SS316 | 10.41 | 39.87 | 36 .29 | 1/2 | 3/4 BSPT | |
| 35 | 291-3/4x1/2R-SS | SS316 | 11.93 | 39.87 | 36 .29 | 3/4 | 1/2 BSPT | |
| 36 | 291-3/4x3/4R-SS | SS316 | 15.74 | 39.87 | 36 .29 | 3/4 | 3/4 BSPT | |
| 37 | 291-3MMx1/8N-SS | SS316 | 2.4 | 23.6 | 17 .8 | 3мм | 1/8 NPT | |
| 38 | 291-3MMx1/4N-SS | SS316 | 2.4 | 24.6 | 23 .4 | 3мм | 1/4 NPT | |
| 39 | 291-4MMx1/8N-SS | SS316 | 2.4 | 25.4 | 18 .8 | 4мм | 1/8 NPT | |
| 40 | 291-4MMx1/4N-SS | SS316 | 2.4 | 25.4 | 23 .4 | 4мм | 1/4 NPT | |
| 41 | 291-6MMx1/8N-SS | SS316 | 4.8 | 27.0 | 18 .8 | 6мм | 1/8 NPT | |
| 42 | 291-6MMx1/4N-SS | SS316 | 4.8 | 27.0 | 23 .4 | 6мм | 1/4 NPT | |
| 43 | 291-6MMx3/8N-SS | SS316 | 4.8 | 29.8 | 26 .2 | 6мм | 3/8 NPT | |
| 44 | 291-6MMx1/2N-SS | SS316 | 4.8 | 31.8 | 33 .0 | 6мм | 1/2 NPT | |
| 45 | 291-8MMx1/8N-SS | SS316 | 4.8 | 28.8 | 19 .8 | 8мм | 1/8 NPT | |
| 46 | 291-8MMx1/4N-SS | SS316 | 6.4 | 28.8 | 24 .4 | 8мм | 1/4 NPT | |
| 47 | 291-8MMx3/8N-SS | SS316 | 6.4 | 31.4 | 28 .5 | 8мм | 3/8 NPT | |
| 48 | 291-8MMx1/2N-SS | SS316 | 6.4 | 32.6 | 33 .0 | 8мм | 1/2 NPT | |
| 49 | 291-10MMx1/8N-SS | SS316 | 4.8 | 31.5 | 23 .6 | 10мм | 1/8 NPT | |
| 50 | 291-10MMx1/4N-SS | SS316 | 7.1 | 31.5 | 26 .2 | 10мм | 1/4 NPT | |
| 51 | 291-10MMx3/8N-SS | SS316 | 7.9 | 31.5 | 26 .2 | 10мм | 3/8 NPT | |
| 52 | 291-10MMx1/2N-SS | SS316 | 7.9 | 31.5 | 33 .0 | 10мм | 1/2 NPT | |
| 53 | 291-12MMx1/8N-SS | SS316 | 4.8 | 36.0 | 23 .6 | 12мм | 1/2 NPT | |
| 54 | 291-12MMx1/4N-SS | SS316 | 7.1 | 36.0 | 26 .2 | 12мм | 1/4 NPT | |
| 55 | 291-12MMx3/8N-SS | SS316 | 9.5 | 36.0 | 26 .2 | 12мм | 3/8 NPT | |
| 56 | 291-12MMx1/2N-SS | SS316 | 9.5 | 36.0 | 33 .0 | 12мм | 1/2 NPT | |
| 57 | 291-12MMx3/4N-SS | SS316 | 9.5 | 39.8 | 36 .8 | 12мм | 3/4 NPT | |
| 58 | 291-14MMx1/2N-SS | SS316 | 11.1 | 38.0 | 35 .1 | 14мм | 1/2 NPT | |
| 59 | 291-16MMx3/8N-SS | SS316 | 9.5 | 38.0 | 30 .2 | 16мм | 3/8 NPT | |
| 60 | 291-16MMx1/2N-SS | SS316 | 11.9 | 38.0 | 35 .1 | 16мм | 1/2 NPT | |
| 61 | 291-16MMx3/4N-SS | SS316 | 12.7 | 39.8 | 36 .8 | 16мм | 3/4 NPT | |
| 62 | 291-18MMx1/2N-SS | SS316 | 11.9 | 39.8 | 36 .8 | 18мм | 1/2 NPT | |
| 63 | 291-18MMx3/4N-SS | SS316 | 15.1 | 39.8 | 36 .8 | 18мм | 3/4 NPT | |
| 64 | 291-20MMx1/2N-SS | SS316 | 11.9 | 44.6 | 41 .7 | 20мм | 1/2 NPT | |
| 65 | 291-20MMx3/4N-SS | SS316 | 15.9 | 44.6 | 41 .7 | 20мм | 3/4 NPT | |
| 66 | 291-3MMx1/8R-SS | SS316 | 2.4 | 23.6 | 17 .8 | 3мм | 1/8 BSPT | |
| 67 | 291-3MMx1/4R-SS | SS316 | 2.4 | 24.6 | 23 .4 | 3мм | 1/4 BSPT | |
| 68 | 291-4MMx1/8R-SS | SS316 | 2.4 | 25.4 | 18 .8 | 4мм | 1/8 BSPT | |
| 69 | 291-4MMx1/4R-SS | SS316 | 2.4 | 25.4 | 23 .4 | 4мм | 1/4 BSPT | |
| 70 | 291-6MMx1/8R-SS | SS316 | 4.8 | 27.0 | 18 .8 | 6мм | 1/8 BSPT | |
| 71 | 291-6MMx1/4R-SS | SS316 | 4.8 | 27.0 | 23 .4 | 6мм | 1/4 BSPT | |
| 72 | 291-6MMx3/8R-SS | SS316 | 4.8 | 29.8 | 26 .2 | 6мм | 3/8 BSPT | |
| 73 | 291-6MMx1/2R-SS | SS316 | 4.8 | 31.8 | 33 .0 | 6мм | 1/2 BSPT | |
| 74 | 291-8MMx1/8R-SS | SS316 | 4.8 | 28.8 | 19 .8 | 8мм | 1/8 BSPT | |
| 75 | 291-8MMx1/4R-SS | SS316 | 6.4 | 28.8 | 24 .4 | 8мм | 1/4 BSPT | |
| 76 | 291-8MMx3/8R-SS | SS316 | 6.4 | 31.4 | 28 .5 | 8мм | 3/8 BSPT | |
| 77 | 291-8MMx1/2R-SS | SS316 | 6.4 | 32.6 | 33 .0 | 8мм | 1/2 BSPT | |
| 78 | 291-10MMx1/8R-SS | SS316 | 4.8 | 31.5 | 23 .6 | 10мм | 1/8 BSPT | |
| 79 | 291-10MMx1/4R-SS | SS316 | 7.1 | 31.5 | 26 .2 | 10мм | 1/4 BSPT | |
| 80 | 291-10MMx3/8R-SS | SS316 | 7.9 | 31.5 | 26 .2 | 10мм | 3/8 BSPT | |
| 81 | 291-10MMx1/2R-SS | SS316 | 7.9 | 31.5 | 33 .0 | 10мм | 1/2 BSPT | |
| 82 | 291-12MMx1/8R-SS | SS316 | 4.8 | 36.0 | 23 .6 | 12мм | 1/2 BSPT | |
| 83 | 291-12MMx1/4R-SS | SS316 | 7.1 | 36.0 | 26 .2 | 12мм | 1/4 BSPT | |
| 84 | 291-12MMx3/8R-SS | SS316 | 9.5 | 36.0 | 26 .2 | 12мм | 3/8 BSPT | |
| 85 | 291-12MMx1/2R-SS | SS316 | 9.5 | 36.0 | 33 .0 | 12мм | 1/2 BSPT | |
| 86 | 291-12MMx3/4R-SS | SS316 | 9.5 | 39.8 | 36 .8 | 12мм | 3/4 BSPT | |
| 87 | 291-14MMx1/2R-SS | SS316 | 11.1 | 38.0 | 35 .1 | 14мм | 1/2 BSPT | |
| 88 | 291-16MMx3/8R-SS | SS316 | 9.5 | 38.0 | 30 .2 | 16мм | 3/8 BSPT | |
| 89 | 291-16MMx1/2R-SS | SS316 | 11.9 | 38.0 | 35 .1 | 16мм | 1/2 BSPT | |
| 90 | 291-16MMx3/4R-SS | SS316 | 12.7 | 39.8 | 36 .8 | 16мм | 3/4 BSPT | |
| 91 | 291-18MMx1/2R-SS | SS316 | 11.9 | 39.8 | 36 .8 | 18мм | 1/2 BSPT | |
| 92 | 291-18MMx3/4R-SS | SS316 | 15.1 | 39.8 | 36 .8 | 18мм | 3/4 BSPT | |
| 93 | 291-20MMx1/2R-SS | SS316 | 11.9 | 44.6 | 41 .7 | 20мм | 1/2 BSPT | |
| 94 | 291-20MMx3/4R-SS | SS316 | 15.9 | 44.6 | 41 .7 | 20мм | 3/4 BSPT | |
| 95 | 291-3MMx1/8G-SS | SS316 | 2.4 | 23.6 | 17 .8 | 3мм | 1/8 BSPP | |
| 96 | 291-3MMx1/4G-SS | SS316 | 2.4 | 24.6 | 23 .4 | 3мм | 1/4 BSPP | |
| 97 | 291-6MMx1/8G-SS | SS316 | 4.8 | 27.0 | 18 .8 | 6мм | 1/8 BSPP | |
| 98 | 291-6MMx1/4G-SS | SS316 | 4.8 | 27.0 | 23 .4 | 6мм | 1/4 BSPP | |
| 99 | 291-6MMx3/8G-SS | SS316 | 4.8 | 29.8 | 26 .2 | 6мм | 3/8 BSPP | |
| 100 | 291-6MMx1/2G-SS | SS316 | 4.8 | 31.8 | 33 .0 | 6мм | 1/2 BSPP | |
| 101 | 291-8MMx1/8G-SS | SS316 | 4.8 | 28.8 | 19 .8 | 8мм | 1/8 BSPP | |
| 102 | 291-8MMx1/4G-SS | SS316 | 6.4 | 28.8 | 24 .4 | 8мм | 1/4 BSPP | |
| 103 | 291-8MMx3/8G-SS | SS316 | 6.4 | 31.4 | 28 .5 | 8мм | 3/8 BSPP | |
| 104 | 291-8MMx1/2G-SS | SS316 | 6.4 | 32.6 | 33 .0 | 8мм | 1/2 BSPP | |
| 105 | 291-10MMx1/8G-SS | SS316 | 4.8 | 31.5 | 23 .6 | 10мм | 1/8 BSPP | |
| 106 | 291-10MMx1/4G-SS | SS316 | 7.1 | 31.5 | 26 .2 | 10мм | 1/4 BSPP | |
| 107 | 291-10MMx3/8G-SS | SS316 | 7.9 | 31.5 | 26 .2 | 10мм | 3/8 BSPP | |
| 108 | 291-10MMx1/2G-SS | SS316 | 7.9 | 31.5 | 33 .0 | 10мм | 1/2 BSPP | |
| 109 | 291-12MMx1/8G-SS | SS316 | 4.8 | 36.0 | 23 .6 | 12мм | 1/2 BSPP | |
| 110 | 291-12MMx1/4G-SS | SS316 | 7.1 | 36.0 | 26 .2 | 12мм | 1/4 BSPP | |
| 111 | 291-12MMx3/8G-SS | SS316 | 9.5 | 36.0 | 26 .2 | 12мм | 3/8 BSPP | |
| 112 | 291-12MMx1/2G-SS | SS316 | 9.5 | 36.0 | 33 .0 | 12мм | 1/2 BSPP | |
| 113 | 291-12MMx3/4G-SS | SS316 | 9.5 | 39.8 | 36 .8 | 12мм | 3/4 BSPP | |
| 114 | 291-14MMx1/2G-SS | SS316 | 11.1 | 38.0 | 35 .1 | 14мм | 1/2 BSPP | |
| 115 | 291-16MMx3/8G-SS | SS316 | 9.5 | 38.0 | 30 .2 | 16мм | 3/8 BSPP | |
| 116 | 291-16MMx1/2G-SS | SS316 | 11.9 | 38.0 | 35 .1 | 16мм | 1/2 BSPP | |
| 117 | 291-16MMx3/4G-SS | SS316 | 12.7 | 39.8 | 36 .8 | 16мм | 3/4 BSPP | |
| 118 | 291-18MMx1/2G-SS | SS316 | 11.9 | 39.8 | 36 .8 | 18мм | 1/2 BSPP | |
| 119 | 291-18MMx3/4G-SS | SS316 | 15.1 | 39.8 | 36 .8 | 18мм | 3/4 BSPP | |
| 120 | 291-20MMx1/2G-SS | SS316 | 11.9 | 44.6 | 41 .7 | 20мм | 1/2 BSPP | |
| 121 | 291-20MMx3/4G-SS | SS316 | 15.9 | 44.6 | 41 .7 | 20мм | 3/4 BSPP |
